Aqua Star 125 Models

The Bosch AquaStar is designed to last. The quality of the AquaStar begins with this inside story: all water parts are solid copper or solid brass. The unit is constructed with stainless steel and aluminum. Unlike tank heaters, every part is replaceable or recyclable. Properly maintained, this may be the last water heater you ever buy.

  • all water parts are solid copper or solid brass
  • unit is constructed with stainless steel and aluminum
  • casing is finished with baked epoxy
  • heat exchanger is made of solid copper
  • burners are made of stainless steel
  • unit has a safety thermocouple and overheat shutoff protection
  • CSA design certified
  • compliant with ASHRAE 90.1
  • 82% efficiency rating and .80 energy factor
  • longest warranty (15 years on the heat exchanger when professionally installed) See warranty for 240FX

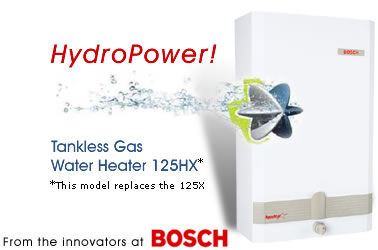

   Click Here for Aqua Star 125HX information



General Specifications


WATER INLET GAS INLET CONNECTION MIN. NATURAL GAS LINE MIN. LP GAS LINE HEIGHT WIDTH DEPTH RECOMM. MIN WATER PRESSURE MAX WATER PRESSURE MIN GAS PRESSURE (W.C.)

LP GAS
NATURAL GAS
All Models* 1/2" NPT 1/2" NPT 3/4" NPT 5/8" 29 3/4" 18 1/4" 8 3/4" 30 PSI 150 PSI 11" W.C. 7" W.C.

38B 1/2" NPT 1/2" NPT 3/4" NPT 5/8" 25 3/8" 10 5/8" 9 1/8" 30 PSI 150 PSI 11" W.C. 7" W.C.
*Not Including the 38B

Specifications by Model
MODEL EFFICIENCY ENERGY
FACTOR
BTU
INPUT
FLUE SIZE SHIPPING
WEIGHT
GALLONS PER MINUTE AT:
45 55 65 75 90
38B 80% .66 40,000 4" 25 lbs. 1.3 1.0 0.9 0.8 0.6
125B, BS, BL 82% .69 117,000 5" 44 lbs. 4.0 3.3 2.8 2.4 2.0
125HX 82% .80 117,000 5" 44 lbs. 4.0 3.3 2.8 2.4 2.0
125FX 80% .78 125,000 4" 52 lbs. 4.0 3.3 2.8 2.4 2.0
*Not Including the 38B Degree Rise


All Installation manuals are located on the Technical page located/linked at the top of every web page.

Technical Page


Aqua Star 240FX Natural Gas includes wall mounting brackets, pressure relief valve.

$869.00


Aqua Star 240FX Propane includes wall mounting brackets, pressure relief valve.

$869.00
FXHood  Wall Vent Terminator for FX model 240.    The 125FX pricing below includes the FXhood.  The Fxhood for horizontal venting.  If you are venting out through a side wall and are purchasing the Aqua Star 240FX, you will need this part.  The FXhood has a back flow vent already included in the product.



$99.00
Aqua Star 125 FX Natural Gas INCLUDES  FXhood, wall brackets and pressure relief valve.
$739.00
Aqua Star 125 FX Propane INCLUDES FXhood, wall brackets and pressure relief valve.



$739.00

AquaStar 125HX LP  no pilot

$589.00

AquaStar 125HX NG no pilot

$589.00

AquaStar 125B  LP

$499.00

AquaStar 125B NG

$499.00

AquaStar 125B LPS Solar

$599.00

AquaStar 125B NGS Solar

$599.00

Aqua Star 38 LP



$309.00

Aqua Star 38 NG



$309.00


The Aqua Star  warranty

AquaStar water heaters are warranted by the Manufacturer (Bosch) through Controlled Energy Corp. Controlled Energy Corp. (CEC) will furnish a replacement heat exchanger and will furnish a replacement of any other part which fails in normal use and service within the applicable periods specified below, in accordance with the terms of this warranty. The CEC replacement will be warranted for the unexpired portion of the original warranty. This warranty will be valid only for water heaters in possession of the original purchaser as recorded on the warranty card.

If the heat exchanger fails within fifteen (15) years after the original installation and operation (units installed on or after January 01, 2001), CEC will furnish a replacement heat exchanger. However, if the water heater is installed in other than a single family dwelling, or is used as a circulating heater in any application, this heat exchanger warranty is limited to two (2) years from date of original installation and operation.

If any other part fails within two (2) years after original installation and operation, CEC will furnish a replacement part free of charge.

This warranty does not cover any labor costs associated with service, removal or re-installation of part(s). All such costs must be borne by the Purchaser.

This warranty will not apply:

1. to defects or malfunctions resulting from failure to properly install, operate or maintain the unit in accordance with the printed instructions provided;
2. to damage or abuse, accident, neglect or freezing and other acts of nature;
3. to damage resulting from operation with either the thermocouple or overheat sensor removed;
4. to failure of the heat exchanger resulting from the operation of the water heater in a corrosive atmosphere or at water temperatures exceeding the maximum rating, or if the water heater is not supplied with potable water.
5. to defects or damage cause by any attachment or modification, including any energy-saving device.

Note: The water heater must be free of damaging scale deposits and not subject to gas pressures greater than those shown on the rating plate, which must not be altered, defaced or removed.

  1. The Owner should contact the dealer who sold the water heater covered by this warranty or
2. Owner should submit the warranty claim directly to CEC at the address listed below, and they will arrange for the handling of the claim.
3. Whenever any inquiry or service request is made, be sure to include the water heater model number, the date of manufacture, date of installation, Dealer's name and the watts and voltage.
4. When returning the water heater or component part(s), they must be individually tagged and identified with the Returned Goods Authorization # issued by CEC and shipped prepaid to CEC at the address below.

No one is authorized to make any other warranties on behalf of CEC. It is expressly understood that the replacement warranty of CEC shall be in lieu of any and all other warranties, express or implied, including warranties of merchantability or fitness for a particular use or purpose, and further that CEC shall not be liable for any loss or damage directly or indirectly arising from the use of the hot water heater, or for any consequential damages arising from such use (including damages from water leakage). CEC's sole liability with respect to any defect shall be for the replacement of defective part(s). Some states do not allow such limitations and exclusions, so the above may not apply to you. This warranty gives specific legal rights. You may also have other rights which vary from state to state. In the event that warranty service is required, reasonable proof of the effective date of installation and operation must be provided; otherwise it may not be possible to honor
