Paloma Technical Support                 Installation

A. Pilot lights but goes out intermittently
B. Pilot lights but goes out as soon as I stop pushing on the gas valve
C. Re-calibrating the gas control valve





A. Pilot lights but goes out intermittently

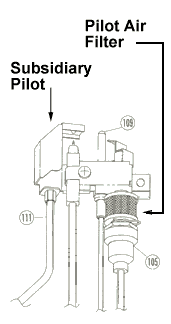

1. Observe pilot light with front cover removed. Any yellow indicates a plugged pilot air filter. A yellow flame is weak, tentative, lazily drifting, without continuous bearing on thermocouple tip.
Solution: Take a deep breath and blow out the obstructed pilot air filter or use compressed air.

Note: In restaurants, due to grease in the atmosphere, the standing pilot orifice can get plugged and not emit any gas but the observer does not notice because the subsidiary pilot emits an aggressive torch. Cover the subsidiary pilot orifice with your finger and push in on the gas valve to test if the standing pilot is emitting gas.


2. A neglected heat exchanger will experience distortion in the copper fin tube area, which eventually will plug the flue gas path causing flame roll-out and partially melting the fusible link, resulting in pilot outages. If the fusible link melts completely, the pilot will not hold at all.
Solution: Examine the grey plastic insulation covering the fuse wires, especially where it is parallel to the bottom lip of the combustion chamber. You might find evidence (charred plastic) of flame roll-out, which needs to be corrected before any parts are replaced.

3. Perform the Drop-out test. With the front jacket removed from the heater, set your stop watch, blow out the pilot flame, and time how long it takes for the magnet to release. You will hear a click. Twenty-five seconds is normal.
Three components are responsible for pilot flame outages: thermocouple (usually lasts 10+ years), magnetic valve (only a problem after its disturbed; do not disturb it), or fuse circuit fusible link (usually the part that we replace). Through the process of elimination we will determine which part is at fault.

4. Gas control valve assembly is not in calibration. Call office for help.





B. Pilot lights but goes out as soon as I stop pushing on the gas valve

1. This is a fun one. From right to left you should have the standing pilot, then the thermocouple, then the white enamel electrode, then the subsidiary pilot. Is everything in the correct place?

2. So the problem is more serious. Through the process of elimination, we will discover which part is the problem.

3. First locate the small 10 mm metric nut at the cold end of the thermocouple. Loosen the nut and pull the thermocouple out of the magnetic safety valve.

4. Locate the clear plastic wire harness (fuse circuit) and wiggle it out of the magnetic valve. It is inserted into the magnetic valve right before the thermocouple. Using a piece of bare copper wire, make a jumper and insert it in place of the wire harness. Insert the thermocouple nut and tighten to snug. Return to the lighting instructions and see if the pilot will now stay lit.

NOTE: Do not operate the heater in this jumpered mode, this is only a diagnostic tool.

5. The fuse circuit appears to have failed and needs to be replaced, BUT it will fail again if the CAUSE of the problem is not addressed. Possible causes: negative pressure in mechanical room, causing flame roll-out; flue path plugged at fin tube area of heat exchanger; mineral build-up in coil causing overheating.

6. If the above steps have eliminated the fuse circuit as the culprit, then we replace the thermocouple.

7. If the fuse circuit and the thermocouple are not the cause of the pilot outage, we remove the magnetic valve and check that the valve is composed of three parts: a brass electromagnet, a white plastic housing with a spring-loaded rubber plunger on the end, and a rubber washer. The white plastic assembly snaps onto the brass magnet. Be sure that the rubber washer is not caught between the brass and the white plastic as this creates a gap that prevents the magnet from grabbing its contact.

While the magnetic valve is out of the heater, we can test its working as well. Insert a jumper and a good thermocouple and compress the plunger while putting heat to the thermocouple tip. After 15 seconds of heating, the plunger should stay compressed. Remove the heat source from the thermocouple and after the thermocouple cools for about 25 seconds, the force of the spring will release the plunger. Anything else is not normal.

8. Here we are at the end of the road. The pilot will not hold and we have done all of the above. Lastly we will be concerned with the calibration of the gas control valve assembly. The gas control valve assembly turns about 180 degrees between stops. In order for the valve to be out of calibration the valve must have turned beyond its stops, which is possible if the piezo igniter has been removed or if the gas knob connector has been broken or removed.



C. Re-calibrating the gas control valve

1. Loosen the set screw on the gas knob connector.

2. Pull the plastic knob and gas knob connector off of the splined gas valve spindle.

3. Turn the spindle clockwise until you hear gas escaping from both pilot tubes without pushing in.

4. Turn the spindle counterclockwise until the gas stops escaping. Find the friction point at which the gas comes on and goes off. Retard the spindle by turning counterclockwise slightly (10 degrees) from the friction point.

5. Place the plastic knob and gas knob connector onto the spindle in the position where the spring-loaded arm on the gas knob connector is barely making contact with the piezo igniter prior to striking it.

6. Tighten the set screw and light the heater normally.

Paloma TANKLESS WATER HEATERS

Order/Pricing

BTU/hr
Gas input
Ph-6D
43,800
PH-12MD
30,000  (Min)
89,300  (Max)
PH-24MD
  37,700  (Min.)
178,500  (Max.)
Net weight in lbs. 20 36 76
Hot water output
  50 F   rise
100 F   rise
g/m  g/h
1.4   84
  .7   42
g/m         g/h
(2.85)    (171)
 1.43        86
g/m        g/h
(5.7)      (342)
2.85       171

DIMENSIONS
Height in.
Width in.
Depth in.
29 5/8
10 1/4
9 7/8
35 3/4
13 3/4
11 3/4

40 3/4
18 3/4
14 7/8
Vent size in. 4 5 7
Gas Connection 1/2 female 1/2 female 3/4 female

Water connection in. 1/2 male 3/4 male 3/4 male
Min. water pressure 4.3 psi 2.1 psi 2.4 psi

  Temperature Rise  (F) Water Flow Rate (Gallons per minute)

Model 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
PH 6D 110/.6 71 48
PH 12 MD
Hot
Warm
100/.48
60/.79
100
60
100/1.43
60
90/1.59
60/1.59
(57)
PH 24 MD
Hot
Warm
100/.48
60/.87
100
60
100
60
100
60
100
60
100/2.85
60/3.17
90/3.17
60/3.17
(71) (63)

  WATER FLOW RATE AND TEMPERTURE RISE Temperature Adjusting Knob

Model   Warm 1 2 3 4 5 Hot
PH 6D Water flow (gpm)
Max. Temp Rise (F)
2.0
35
1.8
39
1.5
47
1.0
70
0.8
88
0.7
102
0.6
117



Warm



* * *



Hot

PH 12 MD Water flow (gpm)
Max. Temp Rise (F)

.79 - 1.59  60



60 - 100



.48 - 1.43 - 1.59 100     90

PH 24 MD Water flow (gpm)
Max. Temp Rise (F)

.87 - 3.17  60



60 - 100



.52 - 2.85 - 3.17 100     90

  THE DESIGN OF MODELS PH-6D,  PH-12MD, PH-16MD, AND CERTIFIED BY AMERICAN GAS ASSOCIATION.  SINCE WE ARE CONSTANTLY IMPROVING OUR PRODUCTS, ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. (All Models Available for Natural or LP Usage)
